| 1: |

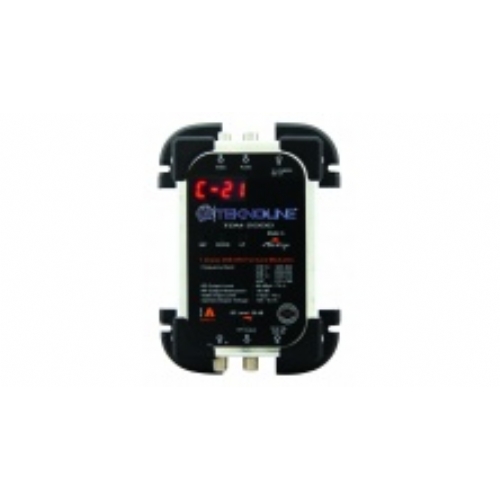

1 channel DSB OFD full band Modulator |
2: |
Frequency Band VHF-S: S02-S40 |
| 3: |
VHF-I: C02-C04 |
4: |
VHF-III: C05-C12 |
| 5: |
UHF : C21- C69 |
6: |
RF Output Level : 90 dBpV/75 |
| 7: |
RF Output Attenuatıon: -20 dB |
8: |
Video Input Level: 1 Vpp/75 |
| 9: |
Camera Output Volage: 12v/0.5A |
| |
